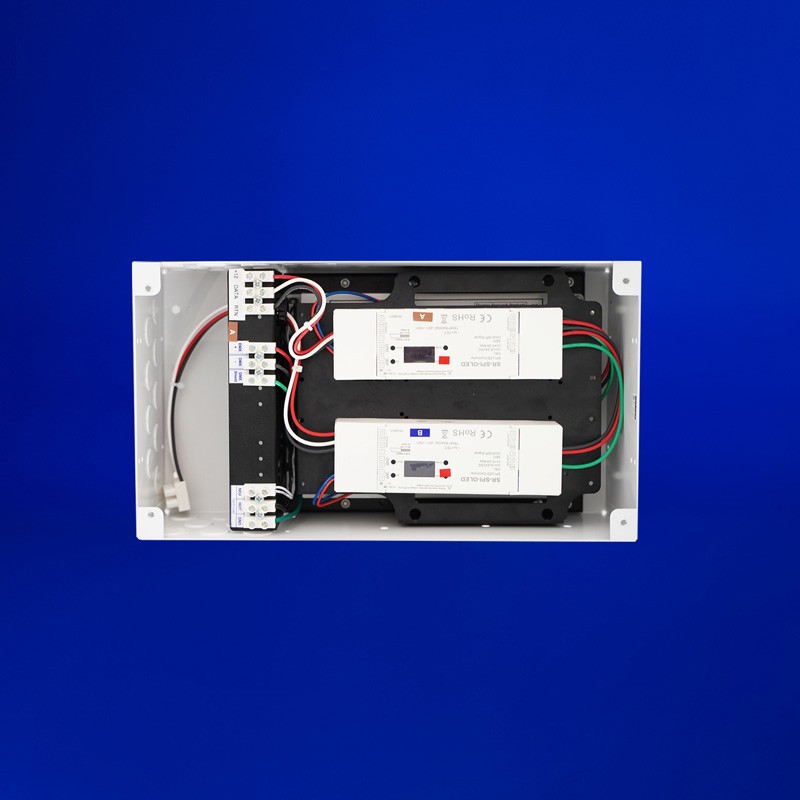

Power supply for individually addressable LED strips, 12 or 24VDC, 60-200W. Converts DMX commands to SPI signals for compatible LED strips. Prewired with terminal blocks and offers both recessed or surface mounting options.
Power supply for individually addressable LED strips, 12 or 24VDC, 60-200W. Converts DMX commands to SPI signals for compatible LED strips. Prewired with terminal blocks and offers both recessed or surface mounting options.
Voltage Drop Calculator

QTM-eLED+IA

12V or 24V DC LED Power Supply - 60W-400W
CSA Certified
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

60-120W at 12VDC | 100-400W at 24VDC

  • Surface mount or recessed, interior rated LED power supply center.
  • Can be controlled using DMX commands, allowing for precise and customizable lighting effects.
  • Supports a maximum of 512 addresses per universe, providing flexibility in addressing multiple LED strips.
  • It provides an SPI (Serial Peripheral Interface) signal to drive the compatible individually addressable LED strip lights.
  • Capable of handling up to 400W of power and control within a single enclosure, offering flexibility in lighting applications.
  • Suitable for indoor use with various lighting applications.
Voltage Drop Calculator
More About QTM-eLED+IA
Technical Information

Technical Information

Environment Indoor (Dry)
Primary Voltage Universal (120V-277V)
Secondary Voltage 12VDC, 24VDC
Warranty 5 Year
Wattage 60W, 100W. 120W, 200W, 300W, 400W
Certifications CSA, RoHS, Declare, Red Listed
Connectivity GRE
Dimming Performance DIM 1%
Dimming Protocol DMX
Driver Electronic
