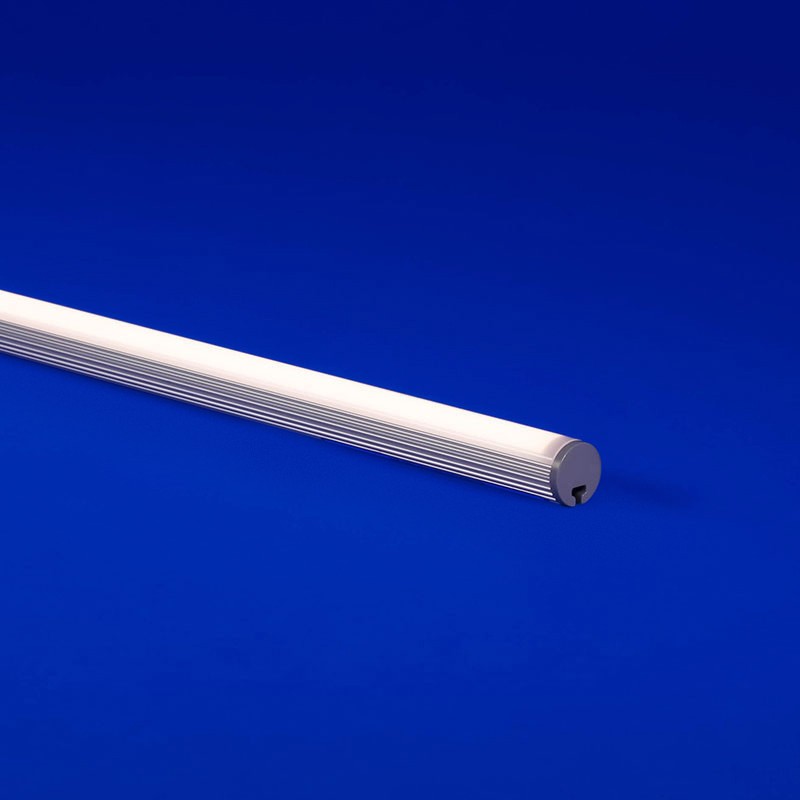

ESSENTIALS ROND-FLAT (01)
Round surface mount linear fixture with 45° rotation
All-around excellence. The ability to adjust to a variety of angles in the field make ROND an extremely versatile lighting solution.
| • Surface mount linear LED fixture • Choose from diffused, frosted or clear lens options for varying diode visibility and beam cutoffs • The unique round profile can be rotated up to 45° in field with inlcuded mounting clips • Features stainless steel mounting clips • Features painted end caps to match extrusion finish • Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations |
More About
ESSENTIALS ROND-FLAT (01)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0 |
| Mounting | Stainless Steel Clip |
| Finish | Satin, Black, Custom |
| Rated | Dry IP20, Damp IP54, Wet IP67 |
| Warranty | 5 year |
| Photometric Performance | Diffused, Frosted, Clear |
| LED Light Engine | Static White, Static White High Efficacy, RGB, RGBW High Efficacy, Static Color, Static White Addressable, Dynamic White High Efficacy (Tunable White), Warm Dim |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Clear, Frosted, Diffused |
| Lumens per Foot | 310 at SW 4.0 w/f |
| CCTs | 2000K, 2200K, 2400K, 2700K. 3000K, 3500K, 4000K |
| Certifications | UL Listed, RoHS, 1 Step 1 Bin, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16 |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6" |
| CRI | 98 at 3000K |
| Dimensions | 0.62" x 0.48" |
| Environment | Indoor/Outdoor |
| Product Applications | Surface Mount |
