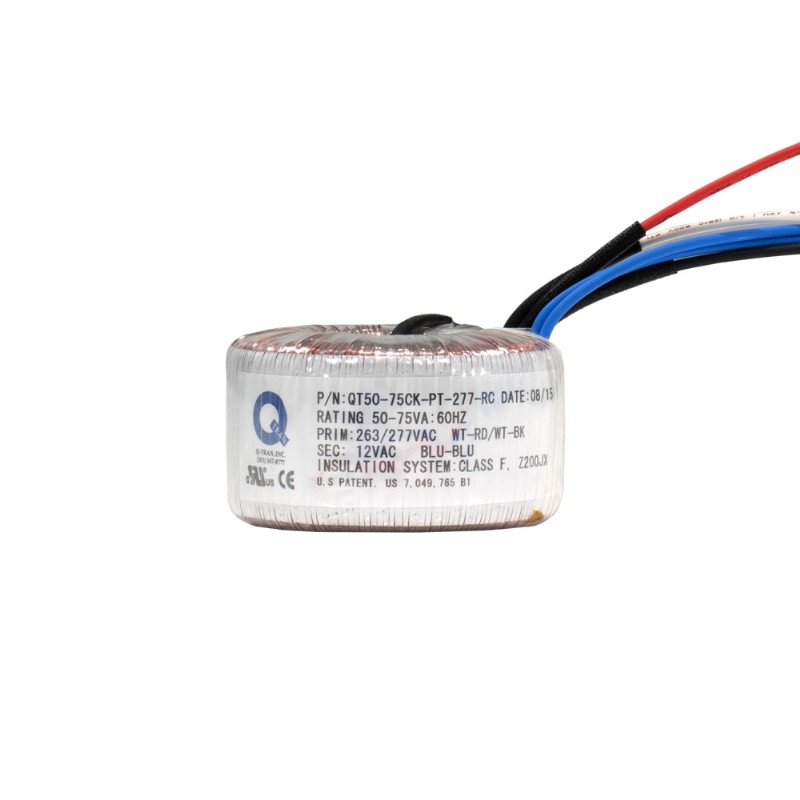

50-75 Watt low voltage magnetic transformer for 120V or 277V input and 12V output. Boasts Class F insulation, silent operation, auto-reset thermal protection, multi-tap voltage compensation, and dimmability with appropriate magnetic dimmers.
50-75 Watt low voltage magnetic transformer for 120V or 277V input and 12V output. Boasts Class F insulation, silent operation, auto-reset thermal protection, multi-tap voltage compensation, and dimmability with appropriate magnetic dimmers.

QT-50-75

50-75 Watts @ 120V or 277V with secondary voltage of 12V

  • Power Rating: 50-75 Watts
  • Primary Voltage: 120V (60Hz) or 277V (60Hz)
  • Secondary Voltage: 12V
  • Class F Insulation System
  • Quiet operation at any light level
  • Internal Auto Reset Thermal protector on the primary
  • Fully dimmable with Magnetic Low Voltage dimmer - must be rated for Magnetic loads
  • 4-6% more efficient than a laminated & Electronic transformer
  • Multi-taps to compensate for losses in the dimmer

Technical Information

Certifications CE
Dimming Protocol Phase
Driver Magnetic
