QTMD
12V or 24V AC LED Power Supply - 300W-600W300 - 600W at 12 or 24VAC

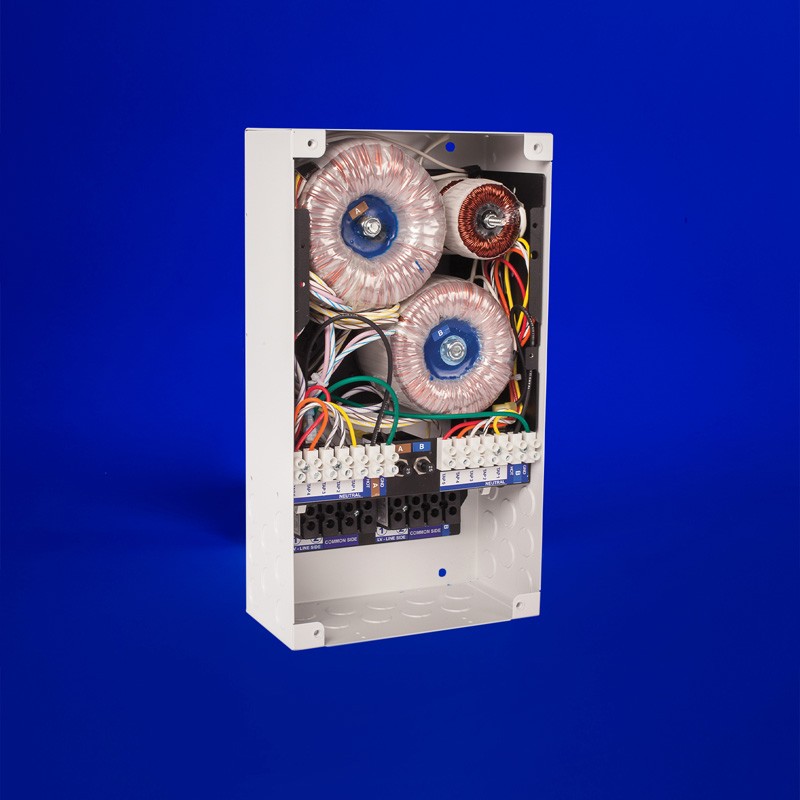

The QTMD is a dual AC power supply ranging from 120W-600W. Part of the QT Series, the quietest, most efficient, safest, most versatile, longest-lasting power supplies in the industry, the QTMS comes standard with five taps to allow the installer to fine-tune the voltages at the transformer to get as close to the desired voltage at the fixture as possible. The QTMS is UL listed to be either surface or recess mounted into a 2”x4” stud wall with the ability to install in any thickness drywall.
More About
QTMD
Technical Information
Environment | Indoor (Dry) |
Primary Voltage | 120V@60Hz, 230V@50/60Hz, 277V@60Hz230V & 277V are not standard, call factory for pricing |
Secondary Voltage | 12V, 24V, 5.5V, 120V 5.5V & 120V are not standard, call factory for pricing |
Wattage | 150W, 300W |
Certifications | UL Listed |
Connectivity | ELDO |
Dimming Performance | DIM TO BLACK |
Dimming Protocol | Phase |
Driver | Magnetic |
