Flanged LED extrusion in satin and black finishes, designed for versatile surface or recess mounting. Features adjustable cutoff angles of 45°, 60°, or 80° and a variety of lens choices, optimized with WhiteOptics for enhanced luminosity.
Flanged LED extrusion in satin and black finishes, designed for versatile surface or recess mounting. Features adjustable cutoff angles of 45°, 60°, or 80° and a variety of lens choices, optimized with WhiteOptics for enhanced luminosity.
Deep flanged LED profile suitable for both surface and recessed applications.
FLUR™ DIMENSIONS

FLUR™

Field Assembled LED Extrusion - Recessed Applications
RoHS LED lighting product
WhiteOptics
Recessable
Declare Label Approved Lighting
Red List Free Approved Lighting
10 Year Warranty

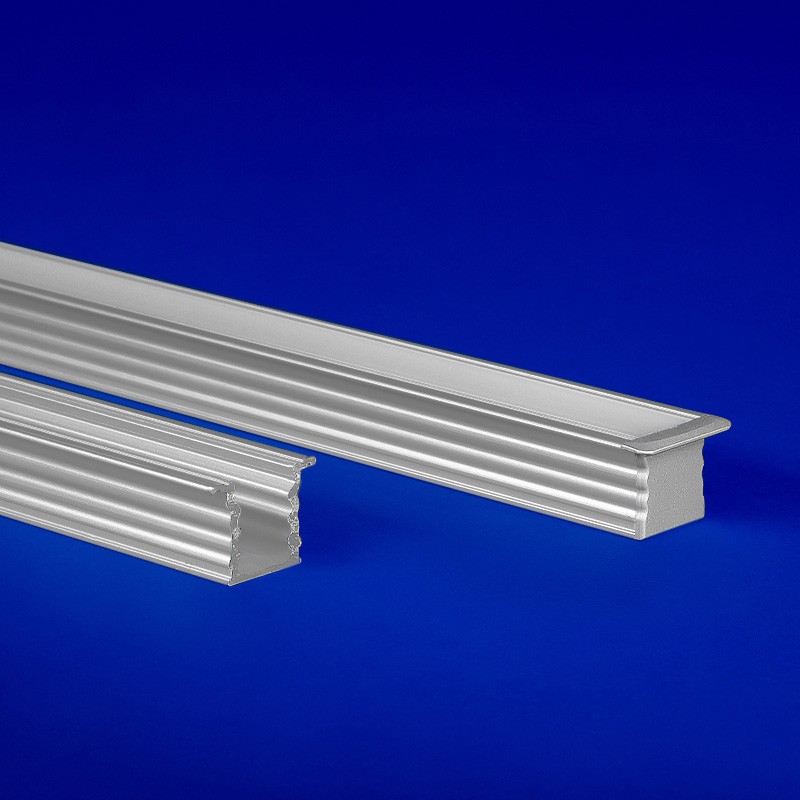

Flanged extrusion for surface or recess mounting

  • QTL’s deepest flanged LED extrusion
  • Suitable for both surface and recessed mounting applications
  • Offers enhanced light control and shielding
  • Lens Options: Clear, Frosted, Polar and Diffused
  • Pair with an optional mounting tray and clear lens to achieve: 45° cutoff, 60° cutoff, 80° cutoff
  • Compatible with WhiteOptics® to increase light output by 5–47%.

*See the Spec Sheet for WhiteOptics Photometric data details.

More About FLUR™
Technical InformationVideosRelated Products

Technical Information

Finish Satin, Black, Custom
Mounting Stainless Steel
Photometric Performance Clear 45°, Clear 60°, Clear 80°
Warranty 10 year
Certifications RoHS,, Declare, Declare Red List Free
Dimensions 0.74" x 0.56"
Environment Indoor/Outdoor
Length 1" increments from 1" - 98.43"Tolerance +0.0"/-0.5"
Lenses Clear, Frosted, Polar, Diffused
Material Aluminum Housing
Product Applications Surface Mount
