Q-SHEETS DW Warm Dim Applications

24VDC Dimmable Flexible LED Sheet
Conformite Europeenne
UL Listed LED lighting products
RoHS LED lighting product
Declare Label Approved Lighting

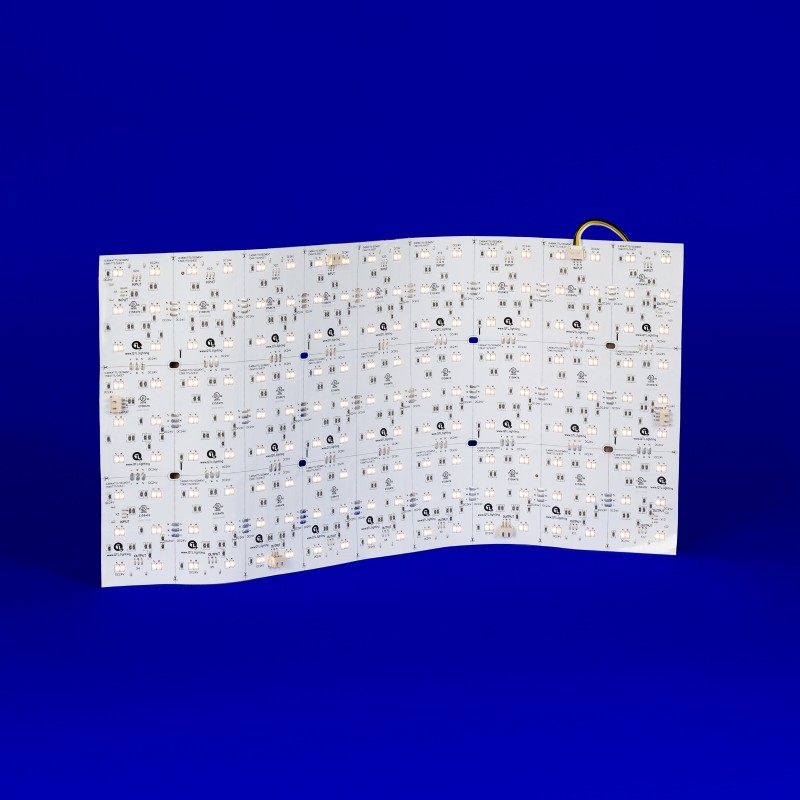

24V DC Dimmable Flexible DW Warm Dim LED Panel

  • Provide even illumination
  • Easy to install and field modifiable
  • Multiple color temperature options
  • Dimmable with compatible QTL DC power supplies
  • When controlled by DALI, DMX or power supply by others, max number of sheets per 96W circuit: 13W - 3 sheets; 23W - 2 sheets
  • When using QTL QTM-eLED+WD, max number of sheets per 96W circuit: 13W - 7 sheets; 23W - 4 sheets
  • 3 step MacAdam ellipse binning
  • UL Listed
More About Q-SHEETS DW Warm Dim Applications
Technical Information

Technical Information

Wattage 13W, 23W
CCTs 2000/3000K, 2200/6500K, 2700K/4000K
Warranty 3 year
Certifications UL Listed, CE, RoHs, Declare
Compatible App SCENE Dongle
CRI 98 at 3000K
Environment Indoor
Rated Dry IP20, Damp IP54
