QT-CAB-eLED+IA
12V or 24V DC LED Power Supply - 100W–700W
IC-rated DC power supply for individually addressable LED strips supports 12VDC or 24VDC, DMX control, and offers 100-700 watt capacity with prewired modules and recessed or surface mounting options

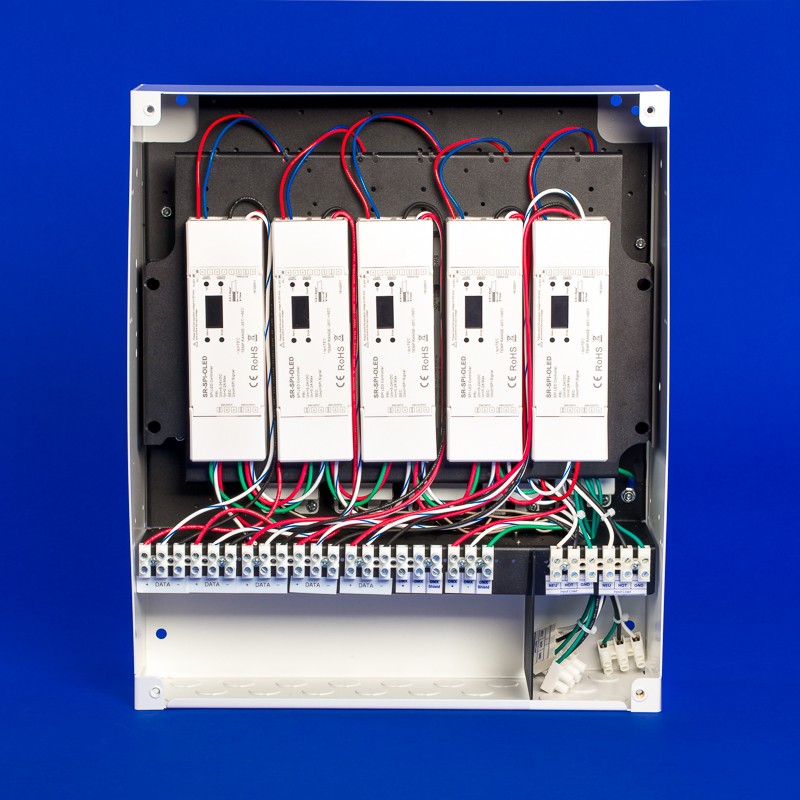

- Surface mount or recessed, interior rated LED power supply center.
- Type IC rated.
- Can be controlled using DMX commands, allowing for precise and customizable lighting effects.
- Supports a maximum of 512 addresses per universe, providing flexibility in addressing multiple LED strips.
- It provides an SPI (Serial Peripheral Interface) signal to drive the compatible individually addressable LED strip lights.
- Capable of handling up to 700W of power and control within a single enclosure, offering flexibility in lighting applications.
- Suitable for indoor use with various lighting applications.
More About
QT-CAB-eLED+IA
Technical Information
| Primary Voltage | Universal (120-277V) |
| Secondary Voltage | 12VDC, 24VDC |
| Wattage Options | 1 60W Driver, 2 60W Drivers, 3 60W Drivers, 4 60W Drivers, 5 60W Drivers, 1 100W Driver, 2 100W Drivers, 3 100W Drivers, 4 100W Drivers, 5 100W Drivers, 6 100W Drivers, 7 1000W Drivers |
| Control | Individually Addressable |
| Mounting | Recessed, Surface Mounted |
| Zones | Up to (5) primary zones |
| Color | White, Black |
| Environment | Dry, Damp |
| Warranty | 5 Year |
| Assembly | Factory Assembled, Not Installed |
| Certifications | CSA, RoHS, Declare |
