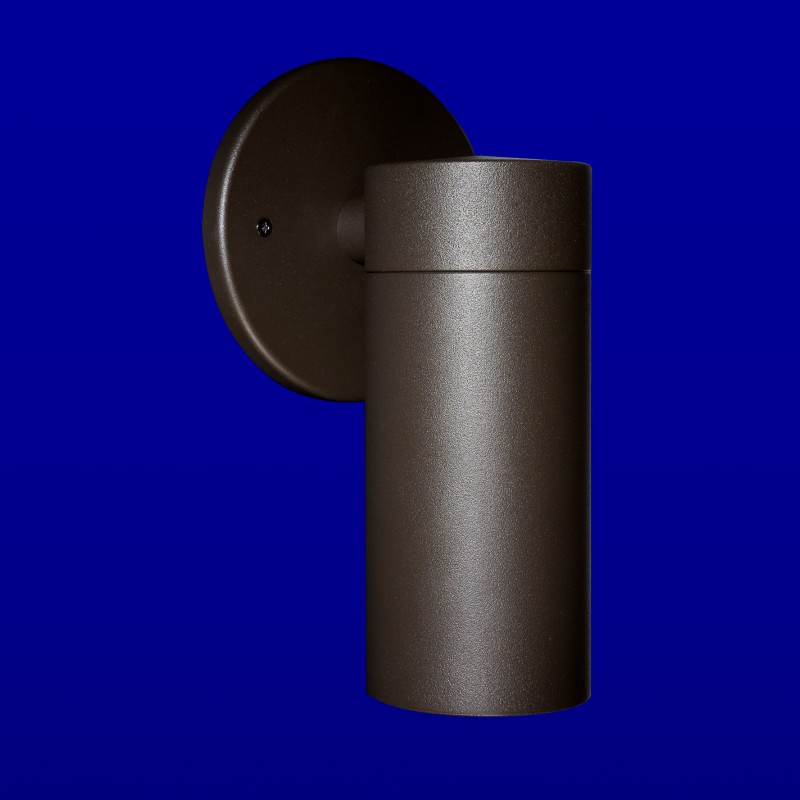

WA-27
120V PAR20 35W, 11W Outdoor LED Wall Mount
120V PAR20 35W, 11W Outdoor LED Wall Mount, 1" Regressed cap
- Cap Style: 1" regressed lens cap; holds up to two accessories
- 6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
- Stainless steel hardware.
- Junction box mount design.
- 10” 18ga. Teflon coated wire leads.
- Three mounting plate options.
- Clear tempered glass lens, glued in.
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Maximum Wattage: 35 watt, 11 watt LED
- Input Voltage: 120V
- Socket: Medium base ceramic
- Environment: Wet Listed
- Specification-grade wet-location luminaire for wall mount applications.
More About
WA-27
Technical Information
| Input Voltage | 120V |
| Maximum Wattage | 35 watt, 11 watt LED |
| Material | 6061 Marine Grade Aluminum |
| Lens | Clear tempered glass lens |
| Environment | Wet Listed |
| Certifications | UL |
| Mounting Plate Options | 4/0 Round Mounting Plate, 4/0 Square Mounting Plate, 3/0 Round Mounting Plage |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Socket | Medium base ceramic |
| Dimensions | 3” dia. x 6 1/4” overall |
| Cap Style | 1" Regressed Cap |
| Warranty | 5 Year |
