This video is a concise installation guide demonstrating the various power feed configurations for QTL's lighting systems. It visually walks through different wiring setups with clear, close-up visuals of the components and labeled feeds.
Key Elements Shown:
-

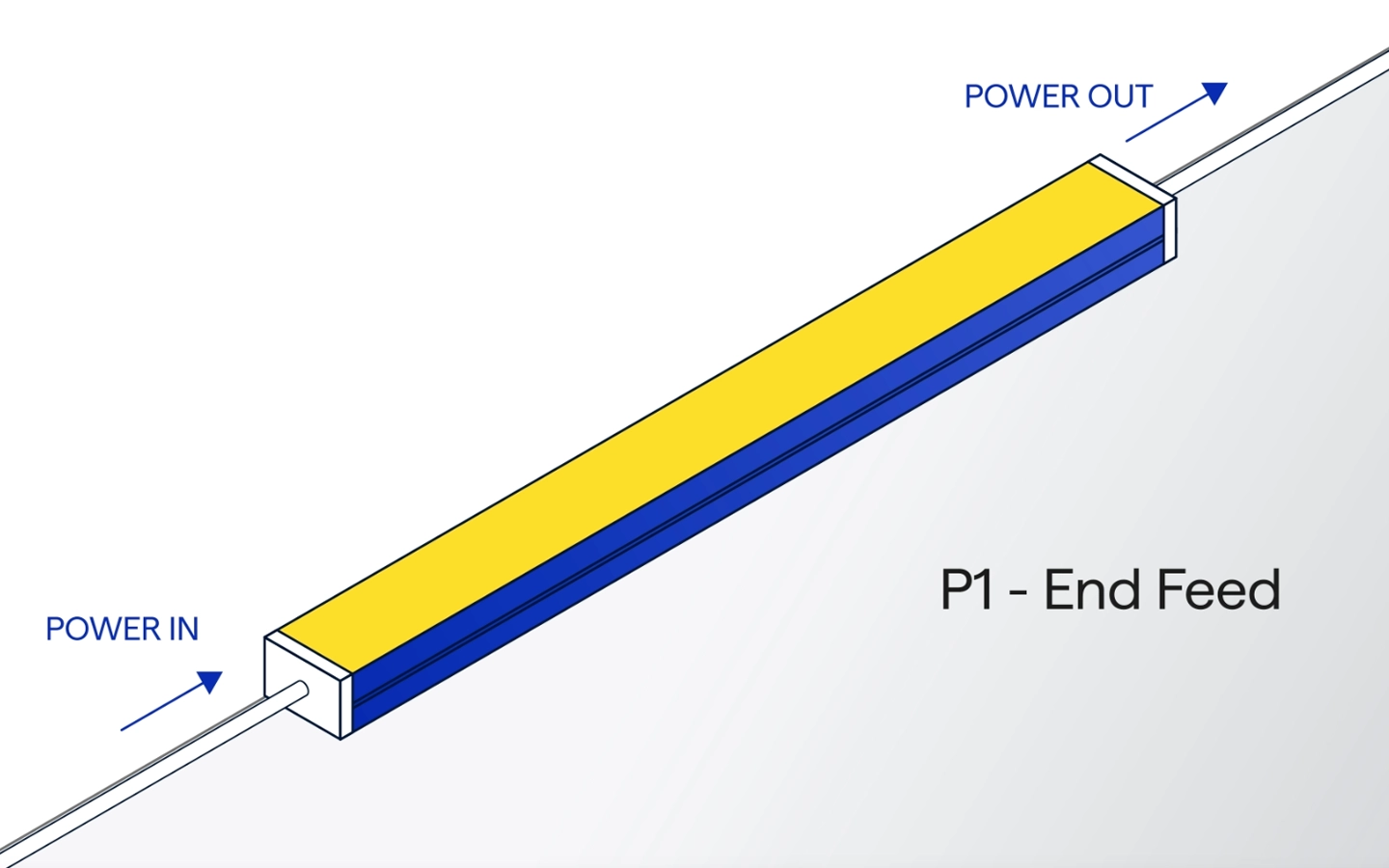

End Feed (POWER IN) — standard connection point for powering the fixture from one end.
-
Bottom Feed (POWER IN / POWER OUT) — wiring configured to enter from the underside of the fixture.
-
Non-Continuous End Feed — wiring for non-continuous fixture runs.
-
Continuous Side Feed (Left) — wiring where the power runs continuously through the side of multiple connected fixtures.
-
Clear End Cap Option — emphasizes the design feature that prevents dim spots in encapsulated fixtures.
