ESSENTIALS TORQ-ENCAPSULATED (03)

Surface Mount Linear LED Fixtures

Encapsulated with polyurethane for indoor and outdoor locations (IK10)

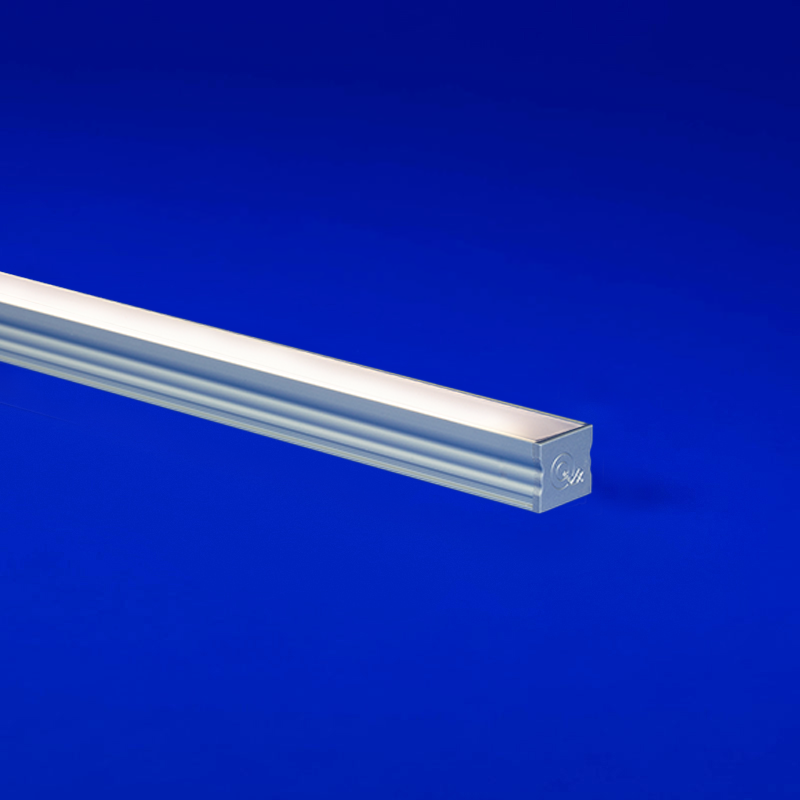

Surface mount linear LED fixture
Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
Encapsulation available in clear or translucent
Optional plastic louver accessory available in white or black for added glare control
Mounting options include stainless steel clips, magnets, and low-profile magnet mounts
Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations

Request Info Find a Rep

More About ESSENTIALS TORQ-ENCAPSULATED (03)

Technical Information

Watts per Foot	1.5, 3.0, 4.0, 5.0, 6.0
Finish	Satin, Black, Bronze, Custom
Mounting	Stainless Steel, Magnet Clip
Rated	Encapsulated IK10
Warranty	5 year
Photometric Performance	Clear, Transucent
LED Light Engine	Warm Dim, Static White, Static White High Efficacy, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW High Efficacy
Length	Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses	Clear, Translucent
CCTs	2400K, 2700K, 3000K, 3500K, 4000K
Certifications	UL Listed, RoHS, Declare, FWC
Compatible App	SCENE Dongle
Connector Wire	Bare Wire 24", Barrel 6", Connector 24", Connector 6"
Dimensions	0.70" x 0.60"
Environment	Indoor/Outdoor
Product Applications	Surface Mount, Cove Lighting, Millwork Lighting, Perimeter Lighting
