300-1500W double AC power supply at 12VAC or 24VAC, featuring five tuning taps for precise voltage adjustment. UL-listed for flexible mounting in walls of any thickness.
300-1500W double AC power supply at 12VAC or 24VAC, featuring five tuning taps for precise voltage adjustment. UL-listed for flexible mounting in walls of any thickness.
QTLD
Voltage Drop Calculator

QTLD

12V or 24V AC LED Power Supply - 300W-1500W
UL Listed LED lighting products
Declare Label Approved Lighting
Red List Approved
10 Year Warranty
MadeDomesticForeignParts
Buy American Act Compliant
Build America, Buy America Compliant

300-1350W at 12VAC or 24VAC

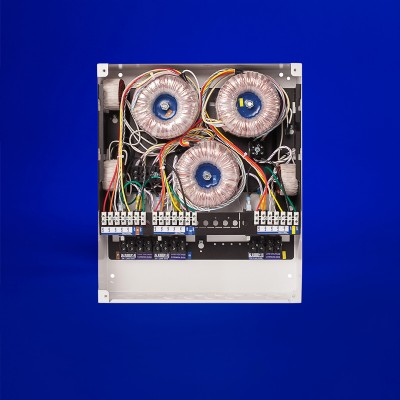

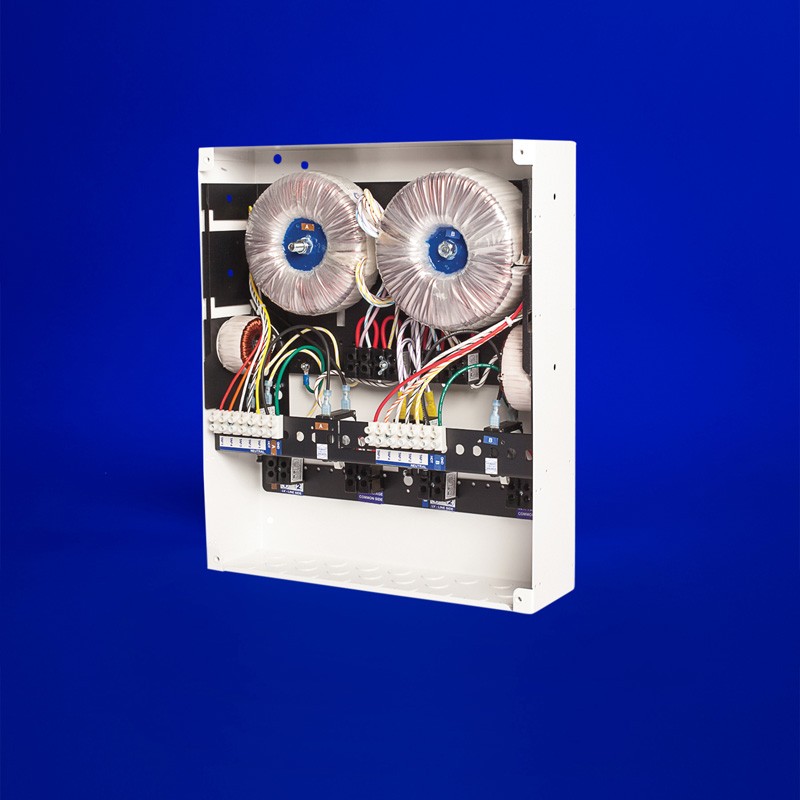

The QTLD is a double AC power supply ranging from 300W-1500W. The QTLD comes standard with five taps to allow the installer to fine-tune the voltages at the transformer to get as close to the desired voltage at the fixture as possible. The QTLD is also UL listed to be either surface or recess mounted into a 2”x4” stud wall with the ability to install in any thickness drywall.

Voltage Drop Calculator
More About QTLD
Technical InformationVideosRelated Products

Technical Information

Environment Indoor (Dry)
Primary Voltage 120V@60Hz, 230V@50/60Hz, 277V@60Hz230V & 277V are not standard, call factory for pricing
Secondary Voltage 12V, 24V, 5.5V, 120V 5.5V & 120V are not standard, call factory for pricing
Wattage 150W, 300W, 500W, 600W, 750W
Certifications UL Listed, Declare, Red Listed
Connectivity ELDO
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Magnetic
Warranty 10 Year
