ESSENTIALS EMBD-ENCAPSULATED (03)

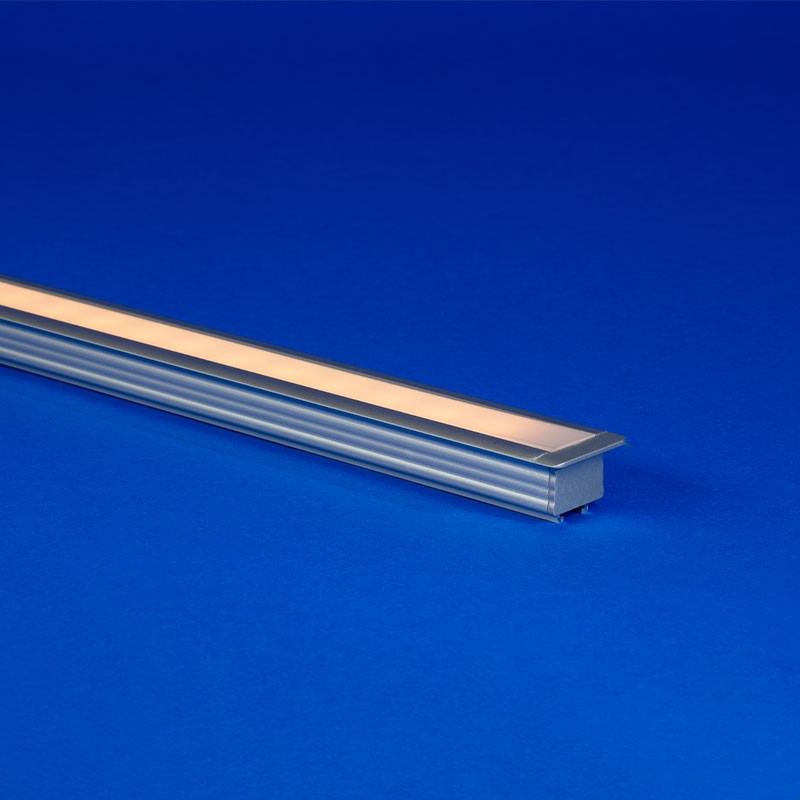

Recessed Linear LED Fixtures
Encapsulated with polyurethane for indoor and outdoor locations (IK10)
- Recessed flanged fixture designed for drywall and millwork installations
- Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
- Encapsulation available in clear or translucent
- Mounting options include spring or magnet mounting clips
- Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
- Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations
More About
ESSENTIALS EMBD-ENCAPSULATED (03)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, 1.5HE, 3.0HE, 4.0HE, 5.0HE, 6.0HE |
| Finish | Satin, Custom |
| Mounting | Spring Clip, Magnetic Clip, Magnetic Mount Accessory |
| Rated | Encapsulated Wet IP67 |
| Warranty | 5 year |
| Photometric Performance | Clear, Translucent |
| LED Light Engine | Static White, Static White High Efficacy, Dynamic White, Dynamic White High Efficacy, Static Color, RGB, RGBW, RGBW High Efficacy |
| Length | Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12". |
| Lenses | Encapsulated Clear, Encapsulated Translucent |
| Certifications | UL Listed, RoHS, FWC, Declare |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Barrel 6", Connector 24", Connector 6" |
| CRI | 98 at 3000K |
| Dimensions | 1.14" x 0.71" |
| Environment | Outdoor |
| Product Applications | Linear Recessed, Cove Lighting, Millwork Lighting |
