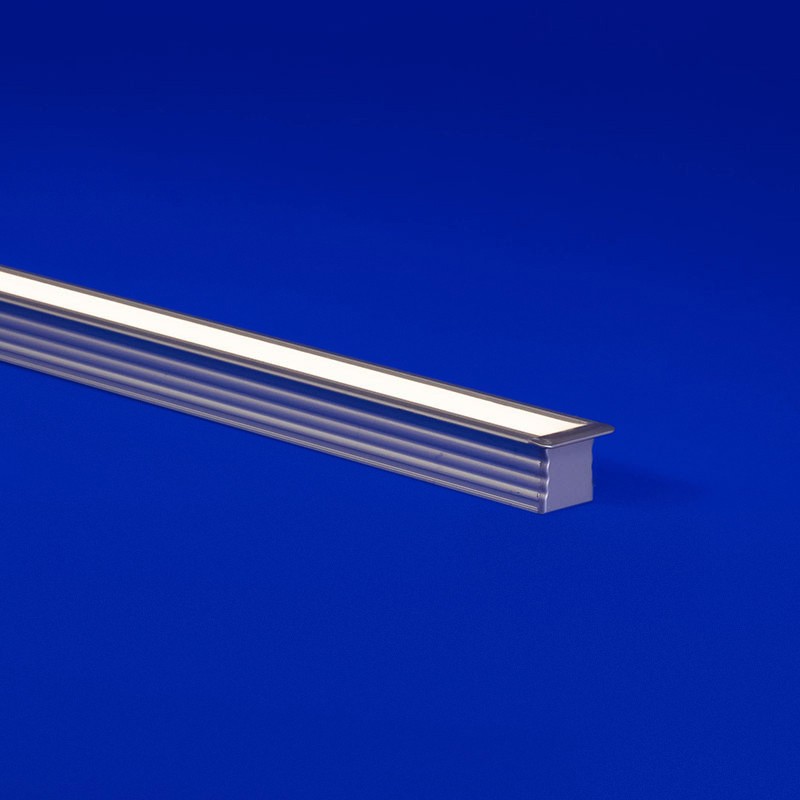

ESSENTIALS FLUR-ENCAPSULATED (03)

Recessed Linear LED Fixtures

Encapsulated with polyurethane for indoor and outdoor locations (IK10)

Deep flanged recessed fixture
Features high quality LED strips encapsulated in polyurethane in a rigid extrusion providing a robust fixture
Encapsulation available in clear or translucent
Offered with an optional mounting tray
Features two wire feed options
Features painted end caps to match extrusion finish or clear end caps to achieve seamless appearance of long runs
Suitable for installation in the storage area of a clothes closet when specified with LEDs at 4.0 watts or less per foot per NEC regulations

Request Info Find a Rep

More About ESSENTIALS FLUR-ENCAPSULATED (03)

Technical Information

Watts per Foot	1.5, 3.0, 4.0, 5.0, 1.5HE, 3.0HE, 6.0HE
Mounting	Stainless Steel Clip
Finish	Satin, Black, Custom
Rated	Encapsulated IK10
Warranty	5 year
Photometric Performance	Clear, Translucent
LED Light Engine	Static White, RGB, RGBW, Static Color, Dynamic White High Efficacy (Tunable), Warm Dim
Length	Fixture length min 12", max 98.43" not including end caps. Tolerance +0 – 1/8". Consult factory for lengths under 12".
Lenses	Encapsulated Clear, Encapsulated Translucent
Lumens per Foot	201 at SW 4.0 w/f
Material	Aluminum Housing
Certifications	UL Listed, RoHS, Declare, Closet Rated Light Fixture NEC 410.2 and 410.16, FWC
Compatible App	SCENE Dongle
Connector Wire	Bare Wire 24", Barrel 6", Connector 24", Connector 6"
CRI	97-98 at 3000K
Dimensions	1.0" x 0.70"
Environment	Indoor/Outdoor
Product Applications	Surface Mount, Linear Recessed, Millwork Lighting
CCTs	2400K, 2700K, 3000K, 3500K, 4000K
