IN-4L
12VAC/DC MR16 9W LED In-Ground Well Light
12VAC/DC MR16 9W LED In-Ground Well Light
- Bronze frame and grate.
- Not compatible with electronic transformers.
- Environment: Wet Listed
- 10 degrees of aiming adjustment.
- Machined aluminum lamp holder.
- ABS housing: 6”dia. x 10 1/2” OAL.
- Tempered glass lens.
- 6 feet of 16/2 low voltage cable supplied.
- Input Voltage: 12VAC/DC (remote magnetic transformer required)
- Socket: GU5.3 Bi Pin Porcelain
- Specification-grade well light, wet-location luminaire for up lighting applications
More About
IN-4L
Technical Information
| Input Voltage | 12VAC/DC (remote magnetic transformer required) |

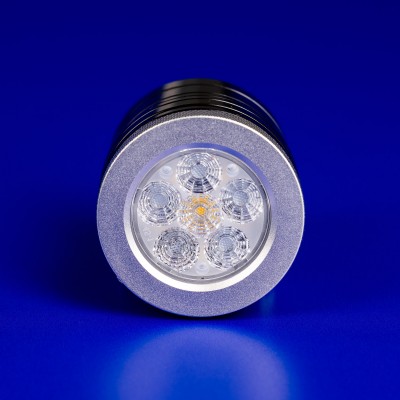

| Maximum Wattage | 9W LED |
| Material | Bronze |

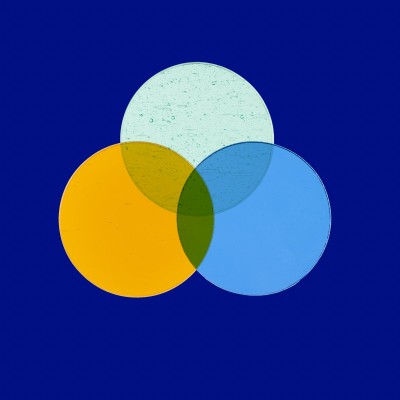

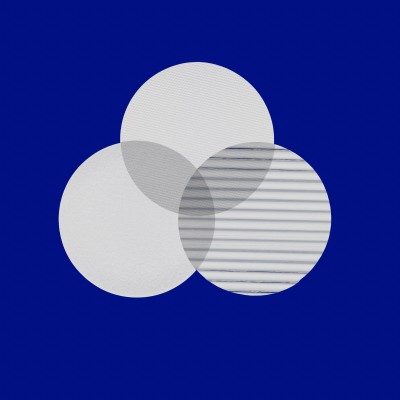

| Lens | 15°, 30°, 45°, 60° |
| Environment | Wet Listed |
| Warranty | 5 Year |
| Certifications | UL Listed |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Dark Bronze, Natural, Silver, White |
| Socket | GU5.3 Bi Pin Porcelain |
| Overall Dimensions | 7 1/2" x 11 1/4" |
| Applications | Up Lighting Applications |
| Fixture Regress | 1 3/4" Regress, 3" Regress (standard) |
| CCT | 2700K, 3000K, 4000K |
| ABS Housing | 6”dia. x 10 1/2” OAL |
