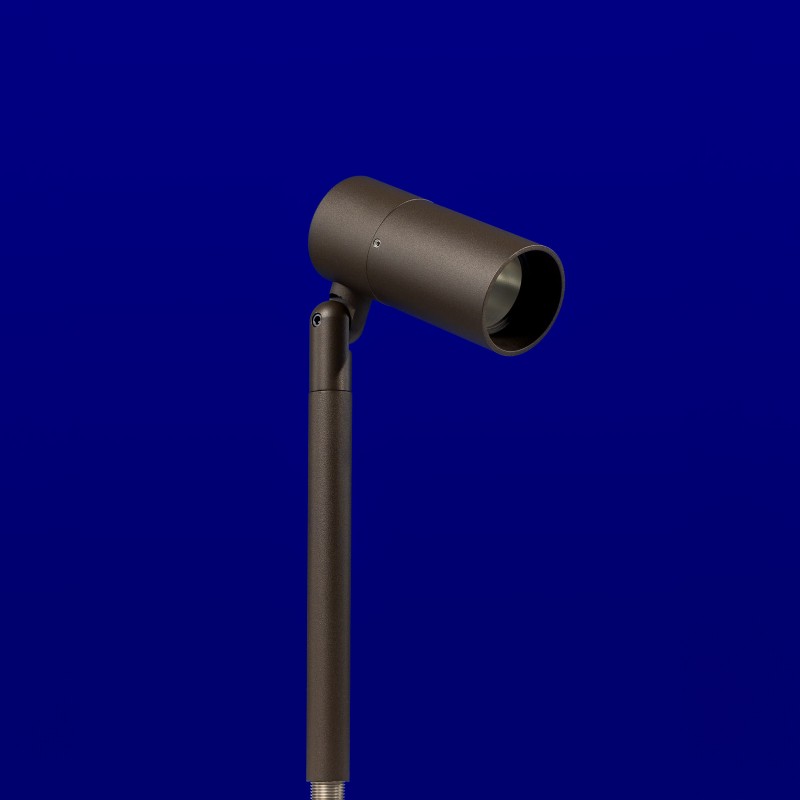

PL-7
12V T4 35W, 8W LED Staff Light
12V T4 35W, 8W LED Staff Light, Three Cap Styles: Flush, 1" Regress, 30° Angled
- Available in three Cap Styles: Flush, 1" Regress, 30° Angled
- 6061 Marine Grade Aluminum. Aluminum components are black, then a polyester powder coat finish is applied.
- Remote transformer required.
- Stainless steel hardware.
- 6 feet of 18/2 low voltage cable supplied.
- Three cap styles from which to choose.
- Stems lengths of 9”- 36” available.
- Adjustable or fixed mounting. (see MT-1 and MT-2)
- Clear tempered glass lens, glued in.
- Cap Styles: Flush, Regress, 45°
- High-temperature silicone O-ring seals are used to seal the cap against the body.
- Molded silicone wire pass-thru is attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 8 watt LED
- Input Voltage: 12V (remote transformer required)
- Lens: Tempered Clear Glass
- Socket: GU5.3 Bi Pin Porcelain
- Environment: Wet Listed
- Specification-grade landscape lighting, wet-location luminaire for path or garden lighting applications.
More About
PL-7
Technical Information
| Input Voltage | 12V (remote transformer required) |
| Maximum Wattage | 35 watt, 4 Watt LED (order separately) |
| Material | 6061 Marine Grade Aluminum |
| Lens Options | Frosted, Clear |
| Environment | Wet Listed |
| Certifications | UL |
| Wiring | 6 feet of 18/2 low voltage cable supplied |
| Socket | GU5.3 Bi Pin Porcelain |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Dimensions | 2 1/8" dia. top, 1" dia. stem |
| Stem Length Options | 9" 12" 18" 24" 30" 36" |
| Cap Style | Flush, Regress, 30° Angle |
| Warranty | 5 Year |
