Q-School Online | VERS Linear LED Fixtures
VERS-ASYMMETRIC (09)

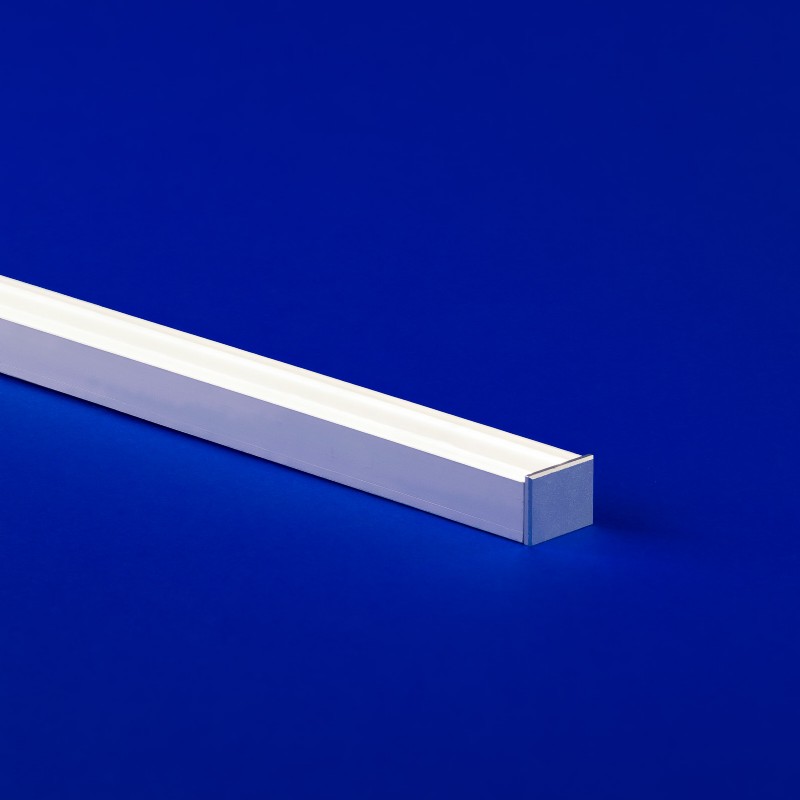

When surface-mounted, this VERSatile fixture directs the light in an asymmetrical direction without having to angle the fixture, making it an excellent solution for illuminating artwork, signage, or even washing a ceiling detail.
• Features an extruded aymmetric lens with a proprietary diffusing agent that allows for light to be focused in a tight 45° beam that is shifted 30° off center
• Features integrated metal endcaps
• Mounting options include a concealed or magnetic clip
• With an internal White Optics coating, the fixture achieves greater lumen output
• Durable anodized aluminum housings
• Consult factory for field assembly options
More About
VERS-ASYMMETRIC (09)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE9.0 |
| Finish | Satin, Black, Bronze, White, Custom, Custom |
| Mounting | Concealed Clip, Magnetic Clip |
| Rated | Dry IP20 |
| Warranty | 5 year |
| Photometric Performance | Asymmetric |
| LED Light Engine | Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Dynamic White, Warm Dim, Static Color, RGB |
| Length | Fixture length min 12", max 98.43" not including end caps. Consult factory for lengths under 12". |
| Lenses | Asymmetric |
| Lumens per Foot | 313 at SW 4.0 w/f |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, Red List Approved, EPD Verified Product, FWC |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 24", Connector 24", Connector 6" |
| CRI | 98 at 3000K |
| Environment | Indoor |
| Product Applications | Surface Mount, Cove Lighting, Millwork Lighting |
