VERS-PROUD-SK (01)

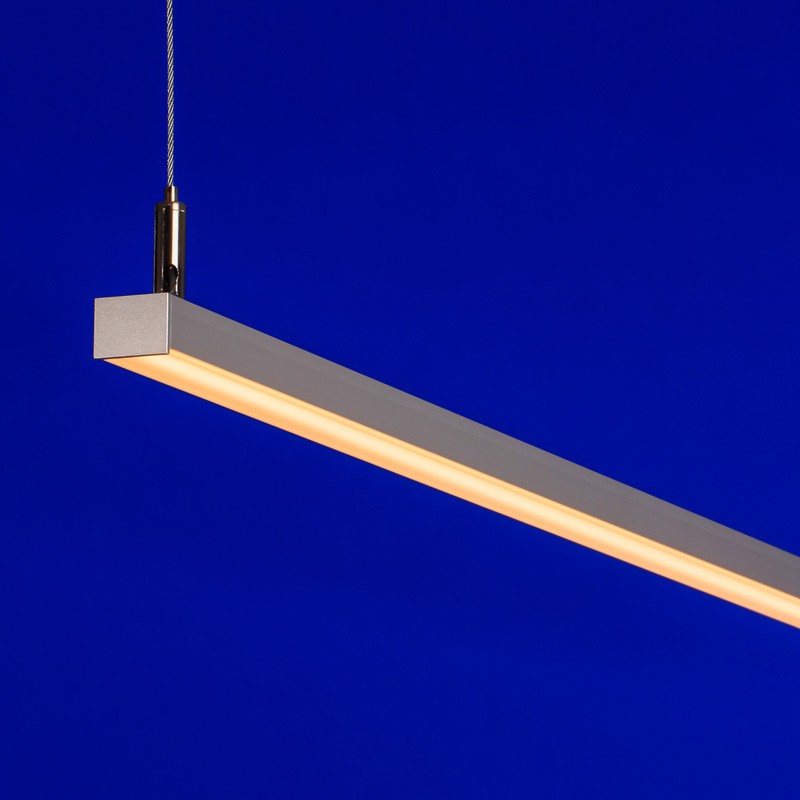

24VDC Linear LED Fixtures - Suspended
The lens creates a slim decorative line of light along the edge of the fixture
• 80 Suspension Kit configurations allow fixture to be seamlessly incorporated into any interior
• Create long, continuous lines of light with easy-to-use inline bracket and double feed joiner connectors
• Features integrated metal endcaps and durable anodized aluminum housings
• Optional external louver accessory offered in matte black or white finish
• Integrated metal end caps combined with an extruded aluminum housing give this fixture a polished modern look
• With standard internal White Optics coating, fixtures achieve greater lumen efficacies
• Consult factory for field assembly options
More About
VERS-PROUD-SK (01)
Technical Information
| Watts per Foot | 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE5.0, HE6.0, HE8.0 HE9.0 |
| Finish | Satin, Black, Bronze, White, Custom |
| Mounting | Suspension Bracket |
| Rated | Dry IP20, Damp IP54 |
| Warranty | 5 year |
| Photometric Performance | Diffused, Polar, Frosted |
| LED Light Engine | Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, Static White, Dynamic White, Static Color, RGB |
| Length | Fixture length min 24", max 98" notincluding end caps.Tolerance +0 – 1/8". Consult factoryfor lengths under 24".Shop drawings required for runlengths over 8ft. |
| Lenses | Frosted, Polar, Diffused |
| Lumens per Foot | 348 at SW 4.0 w/f |
| Accessories | VERS Suspension Kit |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Certifications | UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire 36" |
| CRI | 97,98 at 3000K |
| Environment | Indoor/Outdoor |
| External Louver | White Plastic, Black Plastic, No Lover |
| Product Applications | Linear Suspended |
