UL Listed, IC Rated QT-CAB-eLED+WD LED Power Supply for interiors
UL Listed, IC Rated QT-CAB-eLED+WD LED Power Supply for interiors
Voltage Drop Calculator

QT-CAB-eLED+WD

24V DC LED Power Supply - 100W–600W
CSA Certified
RoHS LED lighting product
5 Year Warranty
MadeDomesticForeignParts
Declare Label Approved Lighting
IES Progress Report Selection 2025

DC power supply for warm dim applications offers 100-600W, supports 1-6 drivers, and uses 0-10V control to simulate incandescent dimming.

  • DC power supply designed for warm dim applications

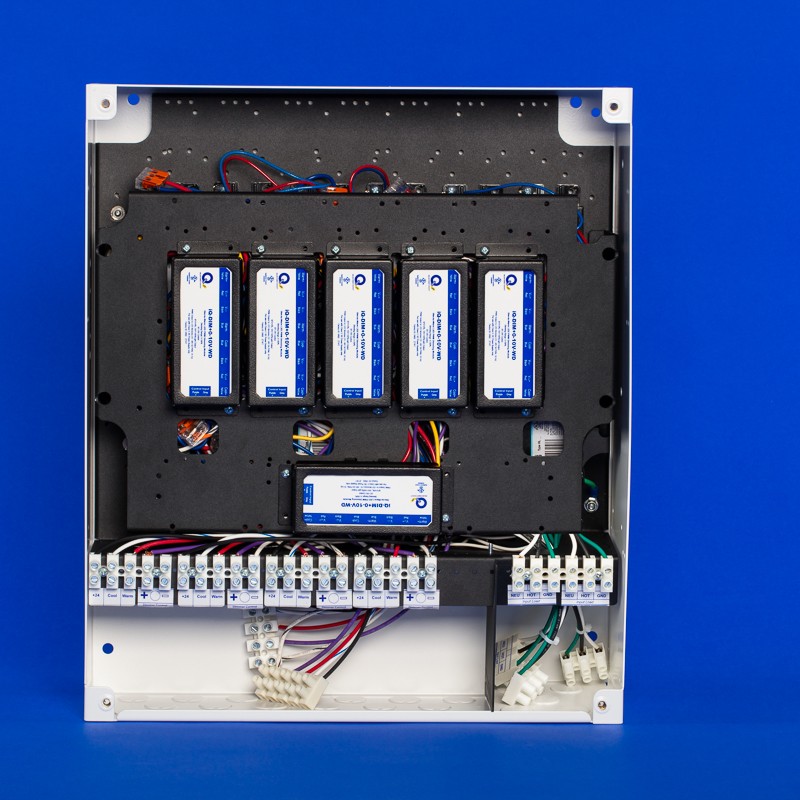

  • UL Listed enclosure allows for 1-6 drivers and 1-6 dimming modules
  • Utilizes 100W constant voltage LED Drivers and Q-Tran's proprietary warm dimming module
  • Control provided by one 0-10V input, simulating incandescent light sources as LEDs dim down
  • Available in 100-600 watts of output
  • Housing can be recessed or surface mounted
  • Type IC Rated
  • Designed for interior use
Voltage Drop Calculator
More About QT-CAB-eLED+WD
Technical InformationVideosRelated Products

Technical Information

Primary Voltage Universal (120-277V)
Secondary Voltage 24VDC
Wattage Options 1 100W Driver, 2 100W Drivers, 3 100W Drivers, 4 100W Drivers, 5 100W Drivers, 6 100W Drivers
Control Warm Dim
Zones Up to (6) primary zones
Color White, Black
Mounting Recessed, Surface Mounted
Environment Dry and Damp
Assembly Factory Assembled, Not Installed
Warranty 5 Year
Certifications CSA, RoHS, Declare
