96W Dynamic White LED Driver designed for Dim to Warm lighting applications
96W Dynamic White LED Driver designed for Dim to Warm lighting applications
Voltage Drop Calculator

QZ-DW

24V DC Dynamic White LED Driver for Warm Dim Applications - 96W
FCC tested
UL Listed LED lighting products
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting

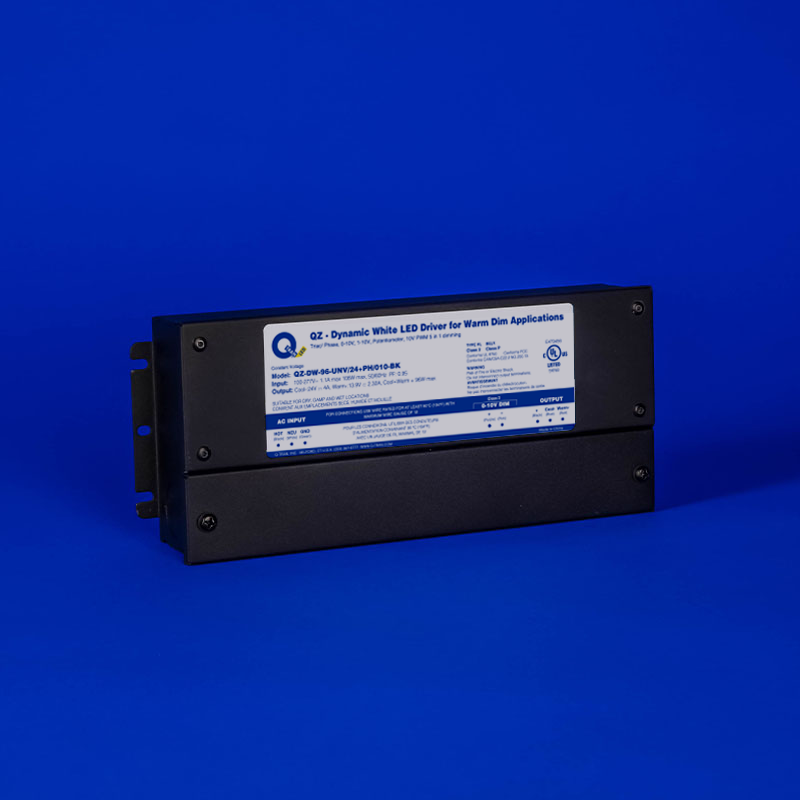

96W dynamic white LED driver for warm dim applications

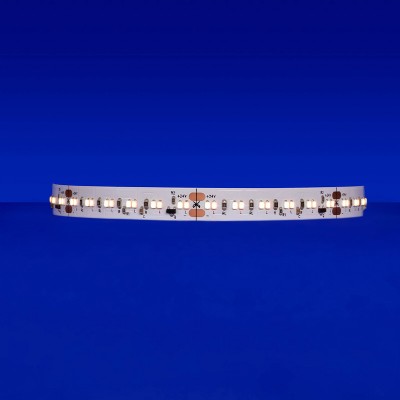

  • Designed for dual circuit, three wire LED strips
  • Functions in warm dim applications
  • Flexibility to select light: transition from cooler white to warm dim lower level
  • Control methods: forward or reverse phase and 0-10v dimming
  • Pulse Width Modulation (PWM) output offers smooth flicker-free dimming
  • Input & Output: universal primary input and provides 24VDC output
  • Capacity: 96 watts
  • Wide operating temperature range: -40°F to +140°F
  • Listed for interior or exterior use.
Voltage Drop Calculator
More About QZ-DW
Technical InformationVideosRelated Products

Technical Information

Environment Dry, Damp, Wet Listed
Primary Voltage Universal (120V-277V)
Secondary Voltage 24V
Warranty 5 Year
Wattage 96W
Certifications UL Listed, FCC, RoHS, Declare
Dimming Performance DIM 0.1%
Dimming Protocol Phase, 0-10V
Driver Electronic
Color Black Powder Coat Finish
Mounting Surface Mount (Vertical/Horizontal)
