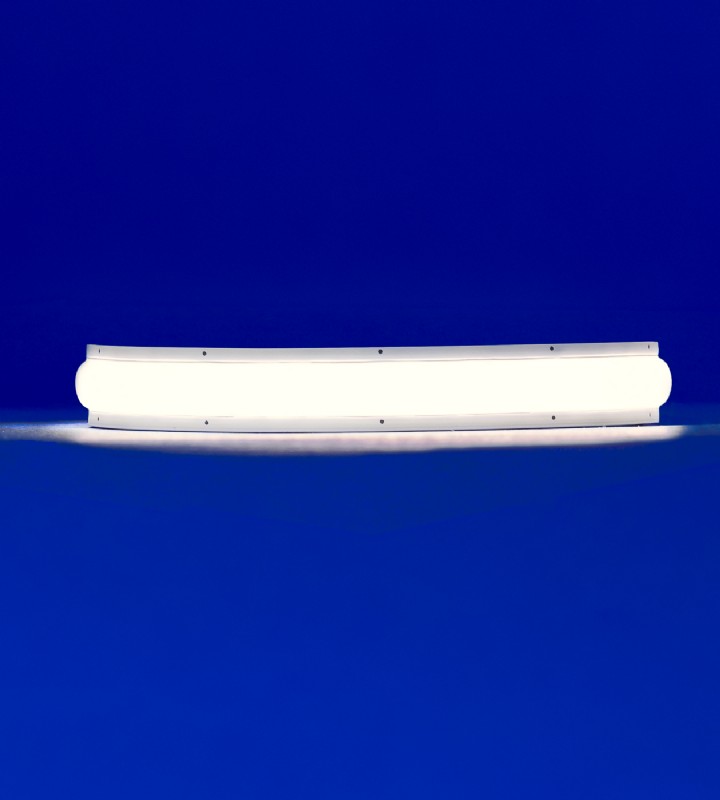

SHIELD-SW-HE24/6.0
Static White High Efficacy LED Strips with Silicone Jacket
- Diode-free LED strip with IP67 silicone jacket
- One bin, two-step static white with 1” cut-point
- 713 lm/ft and 118 lm/W @3000K
- CRI Ra = 94 and TM30 Rf = 91, Rg = 97 @3000K
- Ambient operating temp: -4 ~ 113 °F
- Installation temp: 50 ~ 100 °F | Storage temp: -4 ~ 140 °F
Technical Information
| Voltage | 24VDC |
| Watts per Foot | 6.0W/ft |
| Rated | Dry IP20, Wet IP67 |
| CCTs | 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Cut Length | 1" increments |
| Certifications | UL Listed, RoHS, CE, UKCA |
| Warranty | 5 Year |
