Q-SET+QZ-DALI-DT8
Q-SET+QZ-DALI-DT8
Voltage Drop Calculator

Q-SET+QZ-DALI-DT8

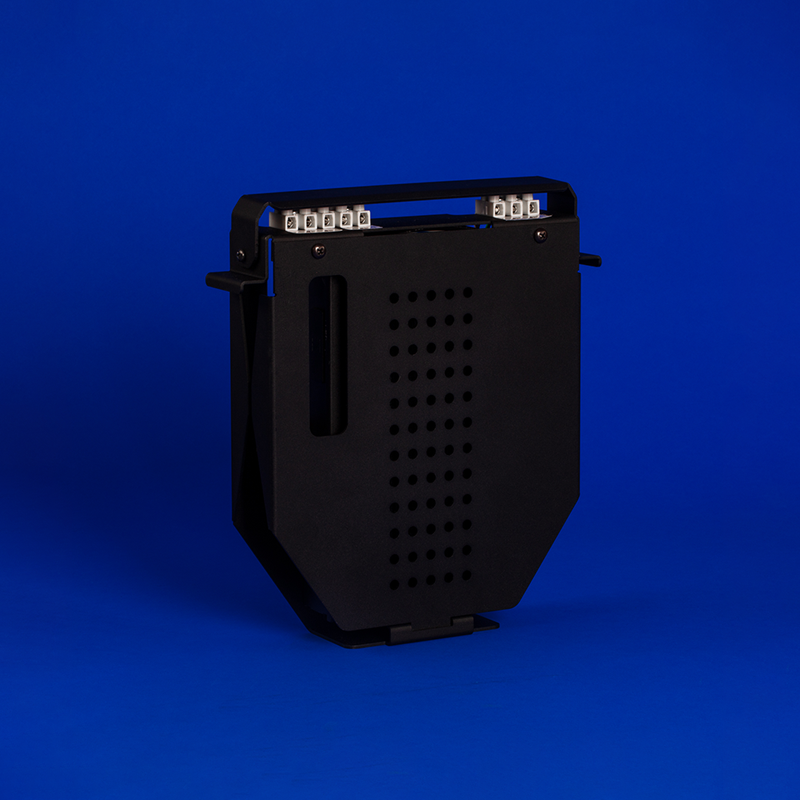

24V DC LED Power Supply - 96W
CSA Certified
Pool & Spa Rated
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

96W Class 2 LED driver with DALI DT8 dimmable options

  • Direct burial and outdoor rated electronic power supply to be installed in our Q-VAULT-5 enclosure
  • Versatile Class 2 LED driver with DALI DT8  dimmable options
  • The Pulse Width Modulation (PWM) output provides smooth flicker-free dimming
  • Programmable with QTL NFC App for reading and writing DALI addresses and adjusting output voltage. Also programmable with DALI-2 controller
  • Control up to 4 LED channels
  • Fully potted driver(s) for moisture resistance
  • Suitable for use with submersible luminaire
Voltage Drop Calculator
More About Q-SET+QZ-DALI-DT8
Technical InformationVideosRelated Products

Technical Information

Wattage 96W
Primary Voltage Universal (120-277V)
Secondary Voltage 24V
Control DALI-DT8
Channel 2 Channel, 3 Channel, 4 Channel
Options Pool & Spa
Warranty 5 Year
Certifications CSA, Declare, Red Listed
