80W at 24VDC dimmable LED driver, perfect for interior linear LED lighting, offering 0-100% flicker-free phase dimming. UL listed, Class II rated.
80W at 24VDC dimmable LED driver, perfect for interior linear LED lighting, offering 0-100% flicker-free phase dimming. UL listed, Class II rated.
IQ-PH-80 QD1
iQ-PH+QD1
Voltage Drop Calculator

iQ-PH+QD1

24V DC Power Supply - 80W
FCC tested
UL Listed LED lighting products
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting

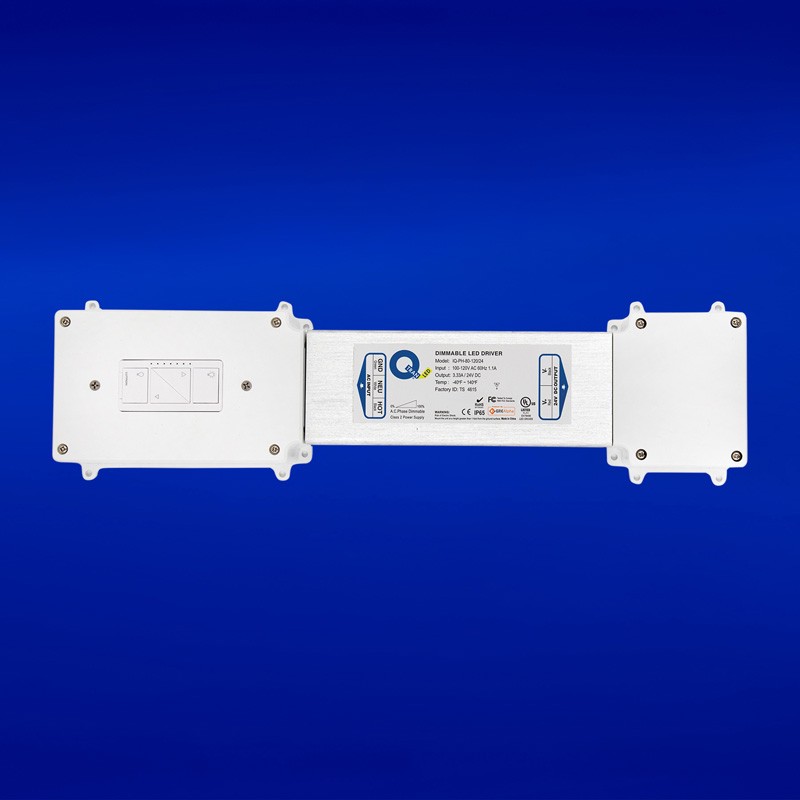

80W at 24VDC with a fully potted design, providing 0-100% flicker-free phase dimming

  • Ideal constant voltage electronical dimmable LED driver for interior LED lighting applications
  • Offers full-range 0-100% flicker-free phase dimming
  • Completely potted design, no venting required
  • Operating temperature range: -40°C to +60°C (-40°F to +140°F)
  • Energy Star compliant
  • Power: 80W at 24VDC
  • UL listed and Class II rated
  • Color variants: Available in satin/white
Voltage Drop Calculator
More About iQ-PH+QD1
Technical InformationVideosRelated Products

Technical Information

Environment Indoor
Primary Voltage 120V
Secondary Voltage 24VDC
Wattage 80W
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, FCC, RoHS, Declare
Connectivity GRE
Dimming Performance DIM TO BLACK
Dimming Protocol Phase
Driver Electronic
Warranty 5 Year
